BMW E46 M3 TL-PRO Coilover System (2001–2006)
BMW E46 M3 TL-PRO Coilover System (2001–2006)
Built to order. Not sure which spec you need? Spec your build with us →

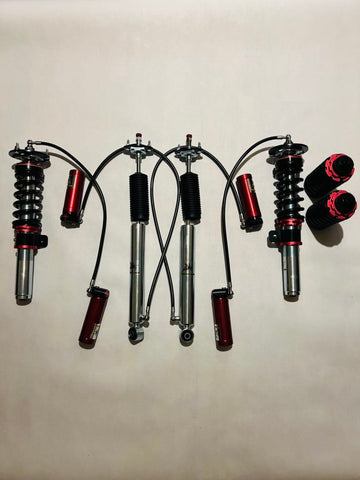

The BMW E46 M3 TL-PRO Coilover System is Thunder Lane's flagship true 3-way adjustable coilover for the BMW E46 M3 (2001–2006), built for serious track use — time attack, hill climb, road racing, autocross, and HPDE. Every set is hand-assembled in Poland with inverted front struts and inverted rear shocks for consistent damping under hard use.
Built for Racing, Time Attack, Autocross, and HPDE
Separate circuits for rebound, low-speed compression, and high-speed compression let you tune platform support, curb compliance, and braking stability independently. Every kit can also be valved specifically for street use — the compliance needed for competent track use often makes for a comfortable street ride, since controlling the platform better also controls body motion better on the street.
Technical Specs
- Inverted front struts and rear shocks, 36mm piston / 40mm body (upside-down rear for increased stiffness and reduced bending load)
- 20-click rebound, 34-click low-speed compression, 18-click high-speed compression (true 3-way)
- Independent Ride Height and Travel Adjustment
- Remote reservoirs with quick disconnects, customizable hose length
- 2.5" linear springs, customizable rates (Swift optional)
- CVP + PVP dyno graphs included with every kit
Construction & Hardware
Inverted struts increase rigidity under load and improve durability during aggressive driving. Check valves keep damping response consistent as temperatures rise, and every damper is fully rebuildable with individual replacement parts available.
Fitment
BMW E46 M3, 2001–2006.
Frequently Asked Questions
What's the lead time?
4–6 weeks, built to order.
What's the warranty?
6 months — void for track damage, covers unreasonable wear and defects only.
What's the benefit of 3-way adjustability?
It lets you tune chassis support (low-speed), impact/curb compliance (high-speed), and rebound control independently.
Can you help me choose spring rates and valving?
Yes — spring rates, valving profile, top mounts, and reservoir hose length are all selected during the build.
Is this streetable?
Yes — every kit can be valved specifically for street use if that's your preference. Even with track-oriented valving, the compliance needed for competent track use often makes for a comfortable street ride, since controlling the platform better also controls body motion better on the street.
Racing Thunder Lane suspension in Time Attack, Hill Climb, or wheel-to-wheel? Ask about product credit through our contingency program.
Want the full breakdown for your chassis? Read the BMW E46 coilover buying guide.
Not sure which spec you need?
Tell us the chassis, how the car is built, and how you use it. We spec the kit before anything is assembled.
Spec your build with us
