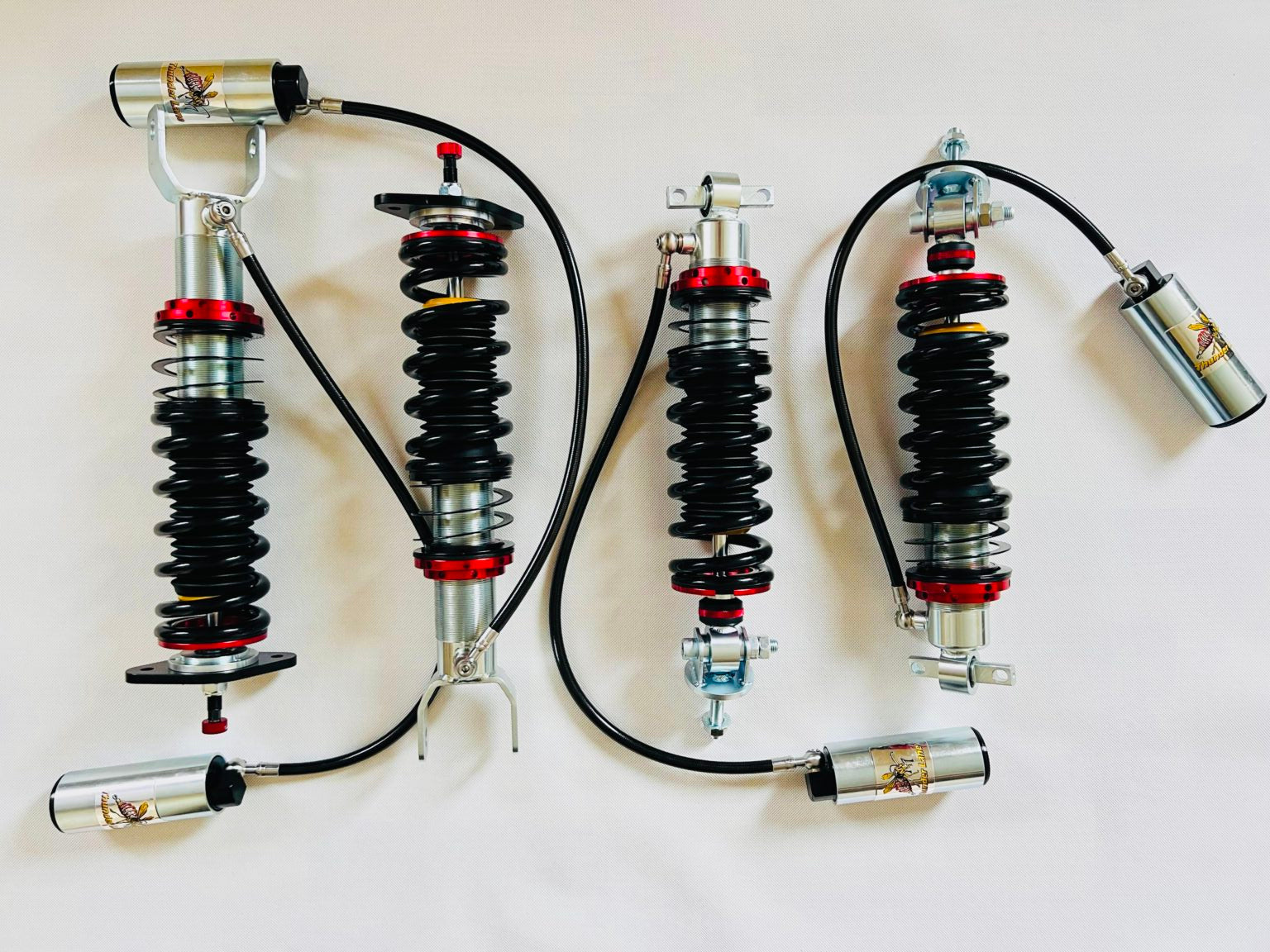

The Corvette C5/C6 TL-ONE Remote Reservoir Coilover System is Thunder Lane's build-to-order coilover for the Chevrolet Corvette C5 and C6 — hand-assembled in Poland with external nitrogen reservoirs to preserve bump travel at a lowered ride height, where many setups run out of room.
Built for Racing, Time Attack, Autocross, and HPDE
This kit also converts the rear from the stock transverse leaf spring to true coil-over-shock configuration for better wheel control and tuning flexibility. Every kit can also be valved specifically for street use — the compliance needed for competent track use often makes for a comfortable street ride, since controlling the platform better also controls body motion better on the street.
Technical Specs
- Inverted front and rear shocks, 36mm piston / 40mm body
- External nitrogen remote reservoirs (travel + thermal capacity)
- 20-click rebound adjustment (1-way)
- Ride Height Adjustment (fixed-length shock bodies, no dead space)
- Rear leaf-spring-to-coilover conversion
- CVP + PVP dyno graphs included with every kit
Construction & Hardware
Check valves manage the split between compression and rebound so the car stays planted at low speed without losing bump compliance. Pillowball/spherical bearing upper mounts hold alignment under load, and every kit is fully rebuildable, serviceable, and re-valvable as tires, alignment, or use case change.
Fitment
Chevrolet Corvette C5 (1997–2004) and C6 (2005–2013) — rear leaf spring deleted and replaced with coil springs; final configuration confirmed during the build.
Frequently Asked Questions
What's the lead time?
4–6 weeks, built to order.
What's the warranty?
6 months — void for track damage, covers unreasonable wear and defects only.
Why add remote reservoirs?
Remote reservoirs increase oil volume and help manage heat while enabling a damper configuration that preserves bump stroke at a lowered ride height.
Does this kit convert the rear leaf spring to true coilovers?
Yes — the rear transverse leaf spring is replaced with coil springs for a true coilover rear setup.
Is this streetable?
Yes — every kit can be valved specifically for street use if that's your preference. Even with track-oriented valving, the compliance needed for competent track use often makes for a comfortable street ride, since controlling the platform better also controls body motion better on the street.
Racing Thunder Lane suspension in Time Attack, Hill Climb, or wheel-to-wheel? Ask about product credit through our contingency program.
Want the full breakdown for your chassis? Read the Corvette & Camaro coilover buyer's guide.
Not sure which spec you need?
Tell us the chassis, how the car is built, and how you use it. We spec the kit before anything is assembled.
